Polyimide Article

Kaxite Sealing's Polyimide Article offers exceptional thermal stability and durability for demanding industrial and electronic applications. With superior material properties and innovative design, it ensures reliable sealing solutions that withstand extreme conditions. Ideal for engineers and manufacturers, this product enhances performance and longevity, solving critical challenges in aerospace, automotive, and tech industries. Its unique blend of flexibility and strength sets it apart from competitors, delivering peace of mind and efficiency. Experience the difference with Kaxite Sealing—your trusted partner for high-performance sealing solutions.

Send Inquiry

Product Description

[ Features ]

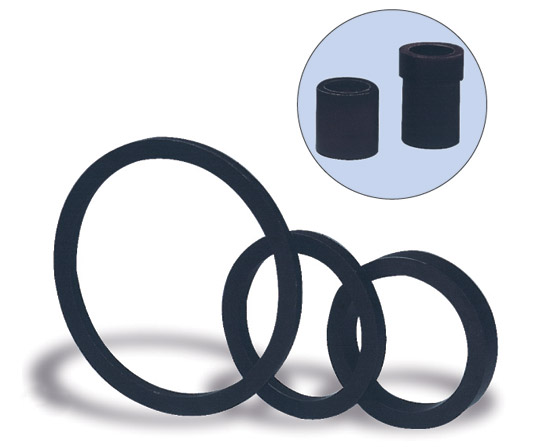

Polyimide article is a solid mass with the colour of translucent or opaque amber, or deep brown. It has good mechanical intensity and possesses the superior properties against high temperature(working temperature 250)and radiation. Polyimide article can be made into thin film,srengthened plastic moulding article, high-vacuum selflubricating bearing of resistance to high temperature, parts of electric apparatus used in high temperature, articles of resistance to radiation and so on.It can also be used as dielectric materials,such as plug,socket, skeleton and wire rack of different electrical applicance,etc.Polyimide added in with a moderate amount of polytetrafluoroethylene(PTFE)and graphite can be used as oilless lubricating material used in high-speed compressor,such as piston ring sealing ring,axle rim,etc.

Polyimide Article

[ Specifications ]

(outside diameter )X(Inside diameter )XHigh(M/M)

30X19X70　36X24X50	57X45X50	66X55X50	100X83X50　120X97X50
50X38X50	66X45X50	70X45X50　72X60X50	180X140X50
57X40X50	66X51X50	84X70X70　81X72X40

[ Features ]

Proportion	1.36-1.37
heat setting temperature	(18.5kg/cm²) 232
bending strength (bending point)	1660kg/cm²
crush strength	>155kg•cm/cm²
friction factor(noumenon)	0.24
hardness(HB)	23
PV value	20-30m•kg/mm²•S
