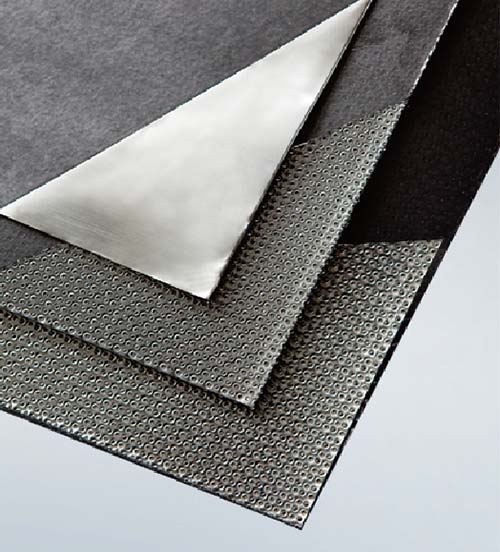

Graphite Sheet reinforced with Tanged Metal
Kaxite Sealing presents Graphite Sheet reinforced with Tanged Metal, a durable sealing solution offering superior thermal conductivity and leak resistance. Its unique reinforcement ensures long-lasting performance in high-temperature applications, ideal for industrial and automotive sectors. This reliable product simplifies maintenance, enhances safety, and stands out for its unmatched durability. Experience lasting peace of mind with Kaxite Sealing's innovation today.
Send Inquiry
Product Description
Description
> Made for various gaskets
> Suitable for petrochemical, mining, vessels, boilers, piping and duct, pumps and valves, flanges
Prime Features
> Lone life and less maintenance
> Replacement for asbestos, new more applications are being indentified daily.
> Excellent comprehensive properties
> Good compressibility and resilience, small stress relaxation, fine compensation function
> Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging, no brittleness, no hot or cold flow.
Technical Data
| Item | Industrial grade | Unclear grade |
| Tolerance of density g/cm3 | +/-0.06 | +/-0.05 |
Carbon content  %
|
98/99 | 99.5 |
|
Tensile strength Mpa
|
3~20 | 5~25 |
|
Compressibility %
|
30 | 30 |
|
Recovery %
|
15 | 15 |
| Sulphur content | 1200 | 700 |
| Chlorine content | 50 | 25 |
| Stress relaxation rate % | 10 | 10 |
| Lgnition loss | 2.0 | 0.5 |
under oxidizing environment-240~+3500
under non-oxidizing environmentPH: 0~14
Dimensions
| Item | Sheets |
| Density g/cm3 | 1.0 |
| Length | 500, 1000, 1500mm |
| Width mm | 1000, 1500, 2000 |
| Thickness mm | 1.5~3.0 |
Hot Tags: Graphite Sheet Reinforced with Tanged Metal, Tanged Metal Graphite Sheet, High-Strength Graphite Sheet
